Importance of Relative Pathing in Bluebeam

When you’re managing large construction projects, efficiency and consistency in your digital workflows are critical. Bluebeam Revu gives you powerful tools to organize drawings, details, and markups but one concept often misunderstood is relative pathing.

Relative pathing might sound technical, but in practice it’s about ensuring that your Bluebeam resources such as Tool Chests, Sets, and Profiles, stay connected and usable no matter where your project files are stored. Let’s break it down and explain why it matters.

What Is Relative Pathing?

Every file on your computer has a “path,” which tells Bluebeam where that file lives. For example:

If the hyperlink uses an absolute path like S:\Jobs\2025\ProjectA\Specs\Concrete.pdf, it will only work for users who have that exact same drive letter and folder structure. If another engineer opens the file on their laptop without the S: drive, the link breaks.

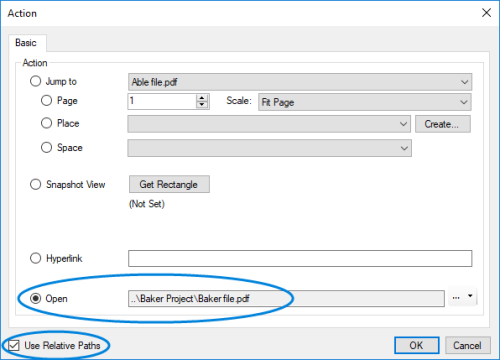

With a relative path, the hyperlink is saved as ..\Specs\Concrete.pdf. As long as the spec sheet stays in the “Specs” folder next to your drawings, anyone who opens the project folder can click the link and it will work.

Relative Pathing in Bluebeam Tool Chests

The Tool Chest is where you keep your custom symbols, markups, and annotations. It’s common for teams to build shared libraries of tools for example:

• Standardized electrical symbols for engineers
• Estimating tools for cost takeoffs
• Architectural keynotes for design teams

If those tools are saved with absolute paths to images or stamps, they may work fine on your computer but fail when another team member opens them from a different folder or drive.

By setting up Tool Chests with relative paths inside a shared project directory (or cloud-synced folder), you ensure that everyone’s symbols remain functional and consistent, no matter who opens the file or where they’re located.

Relative Pathing in Bluebeam Sets

Bluebeam Sets allow you to organize hundreds of drawings into a single, searchable collection. Sets are dynamic they recognize revisions and automatically pull in new sheets without renaming files manually.

Here’s where relative pathing shines:

• If your Set references files by absolute path, moving the project to a different server or folder structure breaks the Set.
• With relative pathing, your Set stays intact because it looks for drawings relative to the Set file location.

That means estimators can still access takeoff sheets, architects can still browse revisions, and managers can review drawing packages without IT having to relink files.

Tip: Always build your Sets inside the project folder you plan to share. This way, relative paths keep everything connected when you archive, zip, or move projects.

Relative Pathing in Bluebeam Profiles

Profiles control your Bluebeam interface including toolbar layouts, markups, tool chests, and menu customizations. Many firms create company-wide Profiles to standardize how employees interact with Revu.

Relative pathing ensures that Profiles continue to point to the correct tools and resources even when the profile is loaded from another workstation or computer. Without relative pathing, users may see broken links or missing resources when moving between field laptops, office desktops, or VDI environments.

Why Construction Professionals Should Care

For managers, architects, estimators, and engineers, the implications are clear:

• Time Savings: No more wasted effort fixing broken links in Sets or missing tools in your Tool Chest.
• Consistency: Every team member sees the same symbols, toolbars, and drawing packages.
• Flexibility: Move or archive project folders without worrying about breaking resources.
• Collaboration: Cloud-based file sharing becomes seamless when relative paths keep everything tied together.

Best Practices for Using Relative Pathing in Bluebeam

1. Keep Project Files Together – Store Sets, Tool Chests, and resource files in a single project folder.
2. Use Cloud or Network Storage – Platforms like SharePoint, Box, or project servers help maintain folder structures.
3. Standardize Profiles – Distribute company Profiles that reference resources with relative paths.
4. Test Before Sharing – Move your folder to a different location and make sure all links still work.

Relative pathing in Bluebeam isn’t flashy, but it’s one of the most important behind-the-scenes practices for reliable, scalable construction workflows. Whether you’re managing a $200k renovation or a $200M infrastructure project on Bluebeam, knowing what Relative Pathing is can save you hours of frustration.
