Anyone can draw a surface in Civil 3D. Few people build one that holds up. One where the grading is right, the volumes are defensible, and the drawings you stamp actually reflect the ground. The difference isn’t the software. It’s what you feed it, and how carefully you check it before you trust it.

This series is about closing that gap. ZenTek Consultants walks through what goes into a surface that’s actually usable, not just visually convincing.

Part 1: Building Surfaces from Survey Data

Every grading plan, volume report, or storm pipe slope you’ll design in Civil 3D traces back to one thing: the surface (TIN). Get the surface wrong and everything downstream is wrong too, no matter how careful you are with the rest of the model. So, before we talk about styles, labels, or any of the display stuff, we need to talk about how you actually build a surface that can be trusted.

It all starts with your source data. Are you building an existing surface from surveyed point data, or a proposed design with flexible elevation values? Let’s start with the survey, or “existing surface” using point data. New users often default to dumping every point from the job into the surface and calling it done. Don’t do that. Civil 3D Point Groups let you control exactly which points participate, and just as importantly, which ones don’t. Things like control points, utility flags, or offset shots that were never meant to define ground shouldn’t be included in your TIN. You need to first build a point group with clear, repeatable query criteria (by description key, by elevation range, by point number range) so the surface rebuilds correctly every time new data comes in from the field.

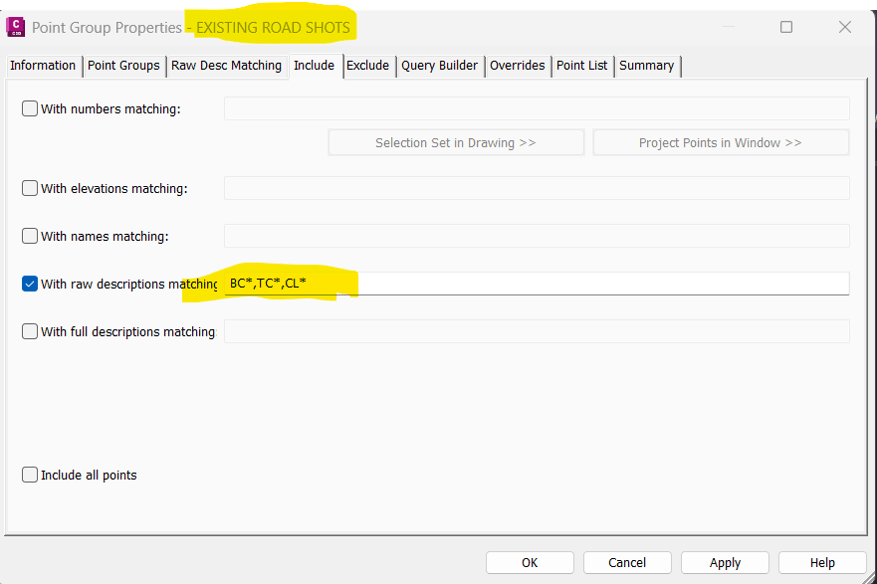

Point Groups are built using tools on the Prospector tab. You can name them however you like, but the idea is to include only specific points in each group (like road centerlines, TC/BC shots, etc.) and then use the groups that have good topographic data within them to build your surface. You use the Include tab to put the desired point(s) in each group by name, number, elevation, whatever you need. Like so:

Just using Points can give you a good surface, as long as you’re careful with the Point Groups and which ones you use. If your Groups are good and the elevation data solid, there shouldn’t be a lot of editing required for an existing surface.

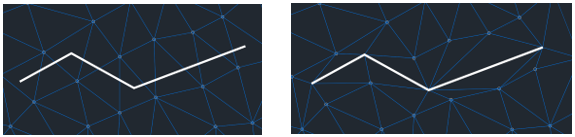

Proposed surfaces require a bit more detailed input because they are going to be manipulated and modified a hundred times as the design progresses. The biggest tool you’ll want to master for developing proposed surfaces is the Breakline. Breaklines are where most surfaces actually live or die. A breakline tells Civil 3D “don’t interpolate across this line, follow it exactly,” which matters enormously with things like top/bottom of curb, edges of pavement, ditch flow lines, and retaining wall faces. If you skip breaklines, Civil 3D will happily triangulate straight across a curb face and give you a surface that looks like a gentle ramp where there should be a six-inch vertical drop. Here’s the big key: breaklines, 3D polylines, and “feature lines” are essentially the same thing in Civil 3D. Breaklines are just 3D polylines that Civil 3D uses as a limit on where to draw triangles, and the feature line is just an easier tool for generating a 3DPoly beyond basic AutoCAD processes. In almost all instances, you can simply build a feature line and then add it as a breakline to your surface to get the best results. In the images below, see how the triangles on the left cross the wall (in white), giving you a sloped surface, whereas once we define the wall (right) as a breakline in our surface, the triangles are on one side or the other, creating a “fold” point where the surface becomes an actual wall and not a slope.

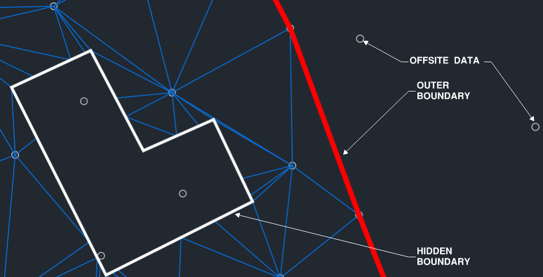

Boundaries are another important component of building a surface. An “outer” boundary keeps your surface from triangulating into nonsense at the edges of your data, where points are sparse and triangles can get long and stretched. The “outer” boundary essentially tells Civil 3D to ignore any data outside of it for surface building purposes. A “hidden” boundary tells Civil 3D to ignore any elevation data inside the boundary. This is commonly used for buildings and pads to keep contours from showing across them.

Lastly, look at your surface build options. Civil 3D gives you control over things like minimizing flat triangles along breaklines and excluding elevations below or above a threshold (handy for filtering obvious survey blunders without manually hunting for them). Set these as part of your standard surface creation routine, not as an afterthought you remember only after a client calls about a strange spike in their grading plan.

Build the habit now: point groups, reviewed breaklines, an appropriate boundary, sensible build options – in that order, every time. Once that habit is in place, everything else in this series gets a lot easier. Don’t miss the next installment of our “Mastering Civil 3D Surfaces” series!
